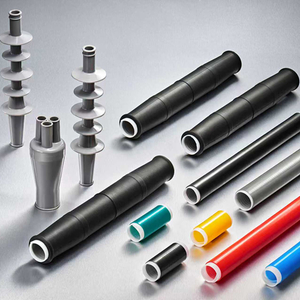

The cold-shrink cable are made from pre-expanded materials on a removable core, these accessories quickly shrink to create a tight, seamless seal when the core is removed. This makes installation faster, easier, and safer compared to heat-shrink options. The key factor of choosing a right cold-shrink cable is managing electrical stress based on system voltage: Low Voltage (LV, e.g., 0.6/1 kV) has minimal stress, so accessories focus on environmental sealing, mechanical strength, and strain relief. Medium Voltage (MV, e.g., 6–35 kV) needs a built-in “stress cone” of conductive/semi-conductive rubber to evenly distribute electrical fields and prevent insulation damage. High Voltage (HV, e.g., ≥66 kV) demands critical stress control with extended creepage distance, advanced grading materials, and strict installation tolerances. Always pick a product rated at or above your system voltage, like 8.7/15 kV. Using one with a lower rating can cause it to fail.

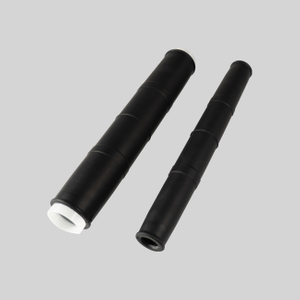

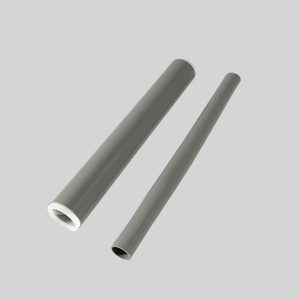

Cold shrink cable accessories, such as terminations and joints, are widely concerned as sealing, insulation, and stress control in electrical connections. Regarding to heat shrink systems that require flame or heat tools, cold shrink accessories use pre-expanded material on a removable core. When the core is pulled, the material shrinks quickly to form a tight seal, enabling fast, easy, and safe installation. The way to selecting the correct accessory is depending on the cable’s insulation material. XLPE cables are common in medium/high-voltage applications silicone rubber. based accessories are used, offering compatible dielectric performance and solid interface formation. EPR insulated cables can also use silicone cold shrink accessories, provided electrical and dimensional ratings match. Older paper-insulated, lead-sheathed (PILC) cables, specialized transition kits are necessary to seal the lead sheath and bridge the dielectric transition to modern materials.
When selecting cold shrink cable accessories, it's crucial to match the internal connector to the cable conductor material.Copper conductors require connectors with high clamping force to ensure a stable connection.Aluminum conductors (which are softer and more susceptible to oxidation) require specialized alloy connectors with oxidation resistance or a serrated surface.When selecting cold shrink cable accessories, verify the conductor material compatibility on the accessory datasheet to ensure a safe and reliable installation.
Cold Shrink Terminations: Vital Innovations in Industrial Cable Protection. These terminations redefine cable insulation, ensuring robust environmental shielding, superior stress distribution, and reliable grounding. Essential for industries like manufacturing, data centers, and telecommunications, they secure cable terminations up to 15kV, offering unmatched weather resilience and optimal power safety.
