Thermal Fusion: Innovating Connectivity with Heat Shrink Terminations for LV 1KV

QLG's 1kV heat shrinkable terminations accommodate PVC, XLPE, and PE polymeric cables rated at 0.6/1.0(1.2) kV, covering a broad spectrum of cable sizes and constructions. These versatile accessories support both crimping and mechanical lug installations.



QLG's mechanical lugs and connectors streamline installation using a socket spanner, eliminating the need for specialized crimping tools. This versatility reduces stock requirements due to their wide application range.



Key Features:

Streamlined, Compact Design

Advanced Sealing and Insulation with Hot Melting Adhesive

Exceptional Corrosion Resistance

UV and Weathering Resistance

Halogen-Free Composition

Superior Electrical and Mechanical Properties

Availability:

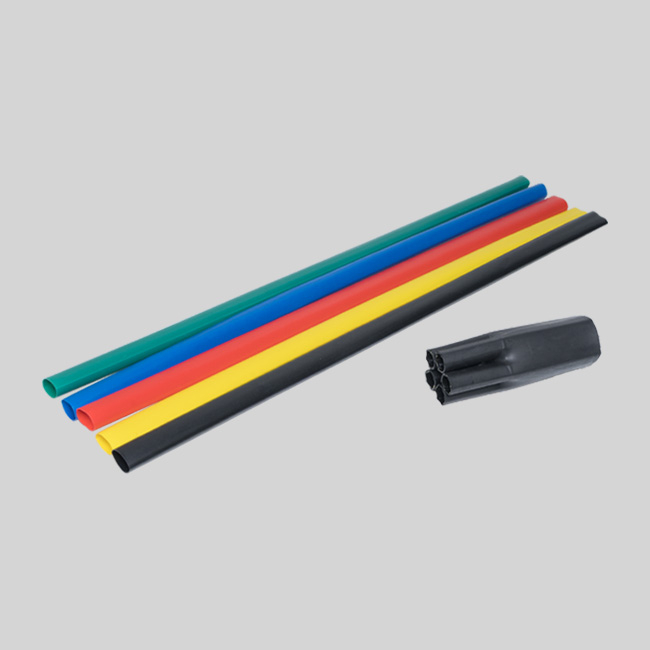

The terminations are crafted to accommodate cables with 1, 2, 3, 4, or 5 cores, regardless of whether they have armor. They're also suitable for use with 3+1, 4+1, and 3+2 cables. These terminations feature a crutch secured by an adhesive-coated breakout inner layer, ensuring a sealed connection. Heat shrink insulation tubes then seal around the cable lug for added protection.



The terminations cater to cables with 1, 2, 3, 4, or 5 cores, with or without armor. They're also suitable for 3+1, 4+1, and 3+2 cables. Secured by an adhesive-coated breakout inner layer, the cable crutch is sealed. Heat shrink insulation tubes seal between the cable lug and the base of the core insulation. For single-core cables, an insulation tube suffices. All materials are UV and weathering resistant.
