Application:

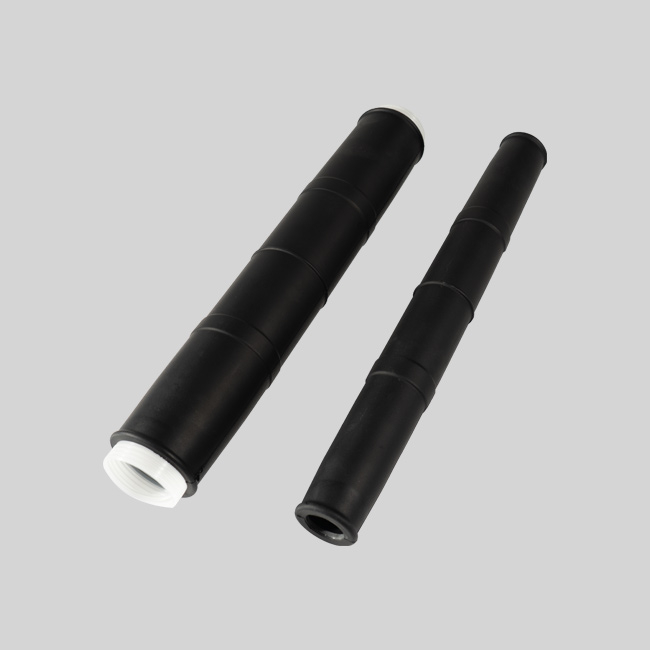

Used for cable intermediate connecting insulation protection up to 15kV.
Feature:
• Quick and easy installation without heat source or tools
• Good insulation and sealing properties
• High track resistance
• Superior hydrophobicity property
• Outstanding corrosion and UV resistance
The Joint Body: A unified design aimed at managing stress, insulation, and reconstructing the cable structure.
Electrical Stress Management: Utilizing stress control tubes and cones to even out electrical fields at screen cuts.
Metallic Shielding: Implementing shielding for enhanced protection.
Joint Body
A unified, one-piece design that caters to stress control, insulation, and reconstruction of the cable structure.
Electrical Stress Management
Stress control tubes and cones work together to smoothen the electrical field around screen cuts.
Metallic Shielding
Copper mesh, secured through a solderless earth connection, envelops the joint area, reconstructing the metallic screen and ensuring continuity across the joint.
Outer Sealing and Protection
Employing both waterproof tape and armour tape for outer sealing and protection, offering mechanical safeguarding and chemical resistance akin to cable oversheath.
Note:
You have options when ordering joints: standard kits (without connectors) or complete kits.
Additionally, joints and components for different cable types are available upon request.
Please note: Connectors need to be ordered separately.
